Technical Bulletin

Bulletin No.: PRO-05-08 Effective Date: 12/15/80 Page: 1 of 2

Subject: Automatic Slack Adjusters w/Quick Connect Yoke

Assembly

We would like to call your attention to the correct procedure for removal and installation

of the quick connect yoke assemblies incorporated on some Bendix automatic slack

adjusters. These assemblies are primarily used on Ford trucks.

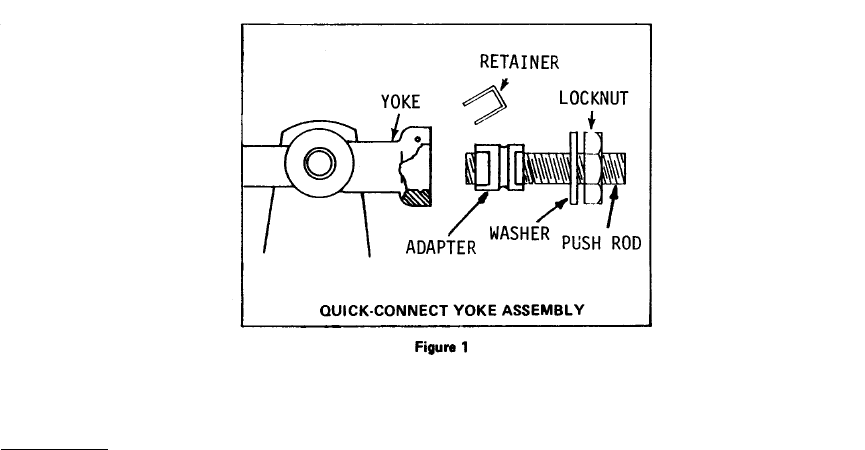

REMOVAL (Ref. Figure 1)

1. Loosen the brake chamber push rod lock nut.

2. Remove retainer.

3. Turn the manual adjustment by means of the 3/8 in. square hole, in the direction

opposite to the arrow on the adjusting crank, until the yoke is clear of the push rod

adapter.

4. Remove the slack adjuster from the foundation brake camshaft.

1 2

Technical Bulletin 1

Sommario

Pagina 1 - Technical Bulletin

Technical BulletinBulletin No.: PRO-05-08 Effective Date: 12/15/80 Page: 1 of 2Subject: Automatic Slack Adjusters w/Quick Connect YokeAssemblyWe would

Pagina 2

INSTALLATION (Ref. Figure 1)1. Install the replacement slack adjuster on the camshaft.2. Run the push rod locknut on the push rod approximately 1-1/
