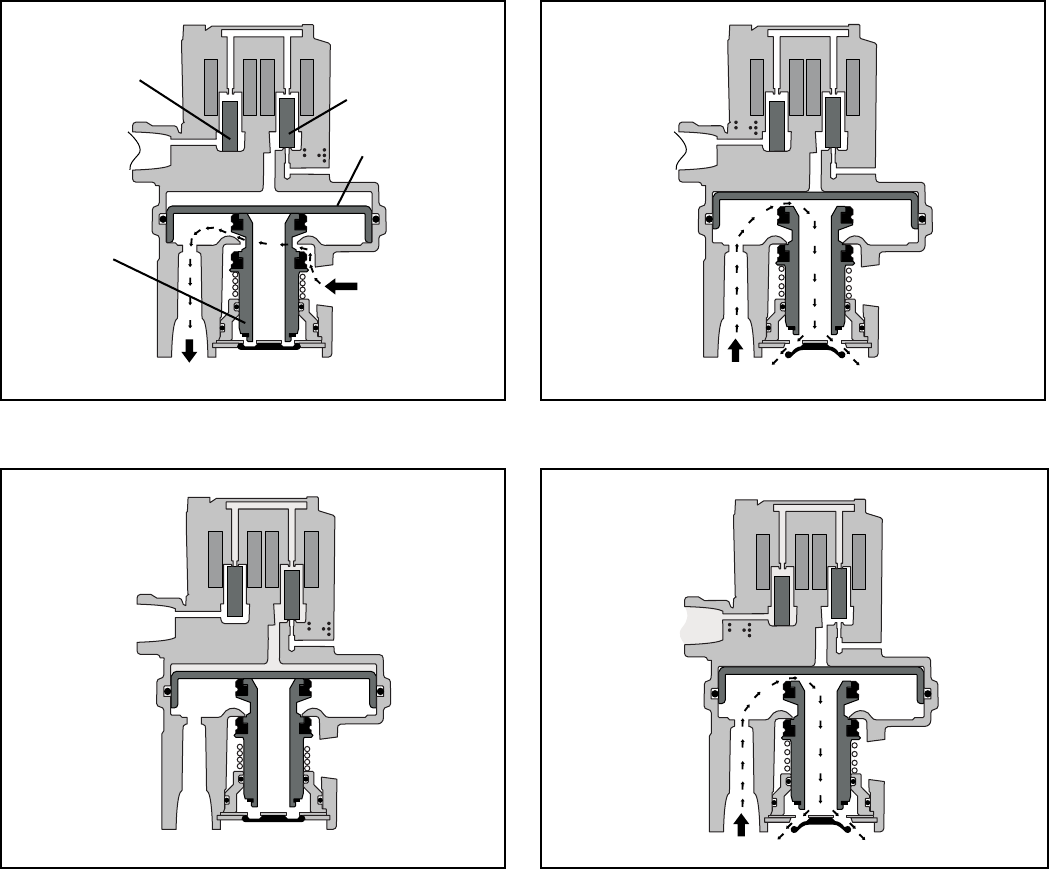

FIGURE 13 - ABS Hold

FIGURE 11 - Normal Apply and ABS Apply

FIGURE 14 - ABS Release

FIGURE 12 - Normal Release

Supply

Outlet Exhaust

Control

Supply

Outlet Exhaust

Control

Supply

Outlet Exhaust

Control

Supply

Release

Solenoid

Outlet

Sleeve

Piston

Control

Hold

Solenoid

6. Never exceed manufacturer’s recommended

pressures.

7. Never connect or disconnect a hose or line

containing pressure; it may whip. Never remove a

component or plug unless you are certain all

system pressure has been depleted.

8. Use only genuine Bendix

replacement parts,

components and kits. Replacement hardware,

tubing, hose, fittings, etc. must be of equivalent

size, type and strength as original equipment and

be designed specifically for such applications and

systems.

9. Components with stripped threads or damaged

parts should be replaced rather than repaired. Do

not attempt repairs requiring machining or welding

unless specifically stated and approved by the

vehicle and component manufacturer.

10. Prior to returning the vehicle to service, make

certain all components and systems are restored

to their proper operating condition.

Relay Valve Operation Modes

1. Apply–Treadle pressure is applied to the top of the

piston. The sleeve is depressed until the outlet pressure

matches the pressure at the top of the piston.

2. Normal Release–Pressure at the top of the piston is

vented through the treadle valve. The sleeve rises to

block the inlet while allowing the chamber air to exhaust

through the center of the sleeve.

3. ABS Hold–Hold solenoid blocks treadle pressure. The

piston stabilizes, holding the chamber pressure at the

same level as that which is above the piston.

4. ABS Release–The release solenoid vents air at the top

of the piston while blocking treadle pressure. The sleeve

rises to block the inlet while allowing the chamber air to

exhaust through the center of the sleeve.
