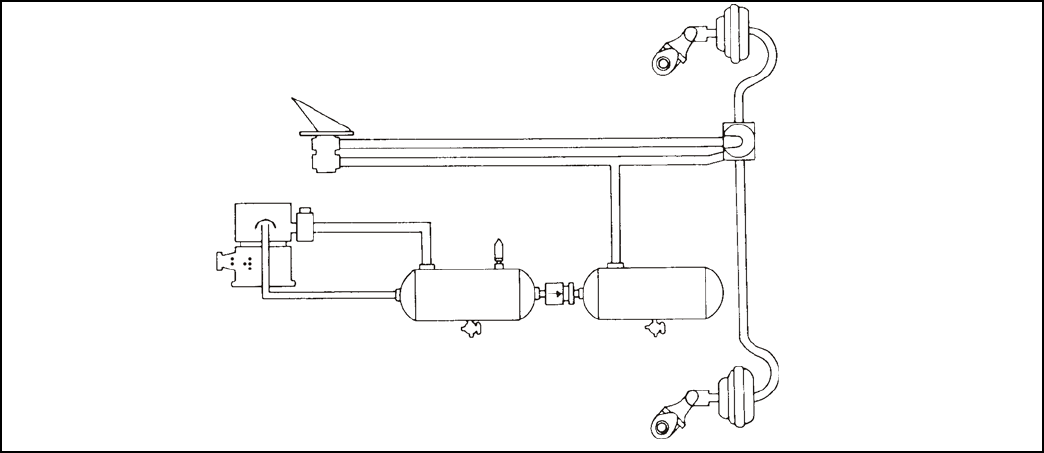

TYPICAL RELAY VALVE PIPING SINGLE CIRCUIT SYSTEM

COMPRESSOR GOVERNOR

SUPPLY

RESERVOIR

SERVICE

RESERVOIR

BRAKE

VALVE

RELAY

VALVE

BRAKE

CHAMBERS

RELEASING

When air pressure is released from the service port and air

pressure in the cavity above the relay piston is exhausted,

air pressure beneath piston lifts the relay piston and the

exhaust seat moves away from the exhaust valve, opening

the exhaust passage. With the exhaust passage open, the

air pressure in the chambers is then permitted to exhaust

through the exhaust port, releasing the brakes.

PREVENTIVE MAINTENANCE

Important: Review the Bendix Warranty Policy before

performing any intrusive maintenance procedures. A warranty

may be voided if intrusive maintenance is performed during

the warranty period.

No two vehicles operate under identical conditions, as a

result, maintenance intervals may vary. Experience is a

valuable guide in determining the best maintenance interval

for air brake system components. At a minimum, the valve

should be inspected every 6 months or 1500 operating hours,

whichever comes first, for proper operation. Should the valve

not meet the elements of the operational tests noted in this

document, further investigation and service of the valve may

be required.

OPERATING AND LEAKAGE TEST

1. Fully charge air brake system and adjust brakes.

2. Make several brake applications and check for prompt

application and release at all appropriate wheels.

3. With brake valve in released position, coat the exhaust

port with soap solution and check for inlet valve and valve

guide o-ring leakage; 1" bubble in 5 seconds leakage

permitted.

4. Make and hold a brake valve application; coat the exhaust

port with soap solution and check for leakage; 1" bubble

in 3 seconds leakage permitted.

If leakage is detected, replacing the inlet/exhaust valve may

correct the problem. If leakage still occurs, leakage may be

caused by relay piston o-ring or exhaust valve seat.

5. Make and hold a brake valve application; coat outside of

valve body in area where cover joins the body for cover

o-ring leakage No leakage permitted. If the valve does

not function as described above, or if leakage is

excessive, it is recommended that the valve be replaced

with a new or remanufactured unit, or repaired with

genuine Bendix parts available at Bendix outlets.

REMOVING AND INSTALLING

REMOVING

Block and hold vehicle by means other than air brakes.

Drain air brake system reservoirs.

If entire valve is to be removed, identify air lines to facilitate

installation.

Disconnect air lines from valve*.

Remove mounting bolts, then valve.

*It is generally not necessary to remove entire valve to service

the inlet/exhaust valve. The inlet/exhaust valve insert can be

removed by removing the two exhaust cover cap screws

and cover. Insert then may be pulled out.

CAUTION: DRAIN RESERVOIRS BEFORE REMOVING

INSERT. Use care so as not to damage inlet/exhaust valve

or guide o-ring.
