Item

No. Description

Kit Contents

Diaphragm

Kit

Clamp Ring

Kit

Bellows

Kit

1 Diaphragm 1 — —

2 Bellow 1 — 1

3 Spring 1 — —

4 Lock Nut 2 — 2

5 Screw 1 1 —

6 Hex Nut 1 1 —

7 Spacing Sleeve 1 1 —

8 Clamp Ring — 1 —

9 Grease Packet (not shown) 1 — 1

Maintenance Kits for Air Disc Brake Chambers

Caution: Be sure to follow the instruction sheet included in the kit when servicing.

The replacement diaphragm must match the original diaphragm.

The clamp band torque is 20 ft-lbs. (28 Nm.)

The mounting nut torque is 133 ft-lbs. (180 Nm.)

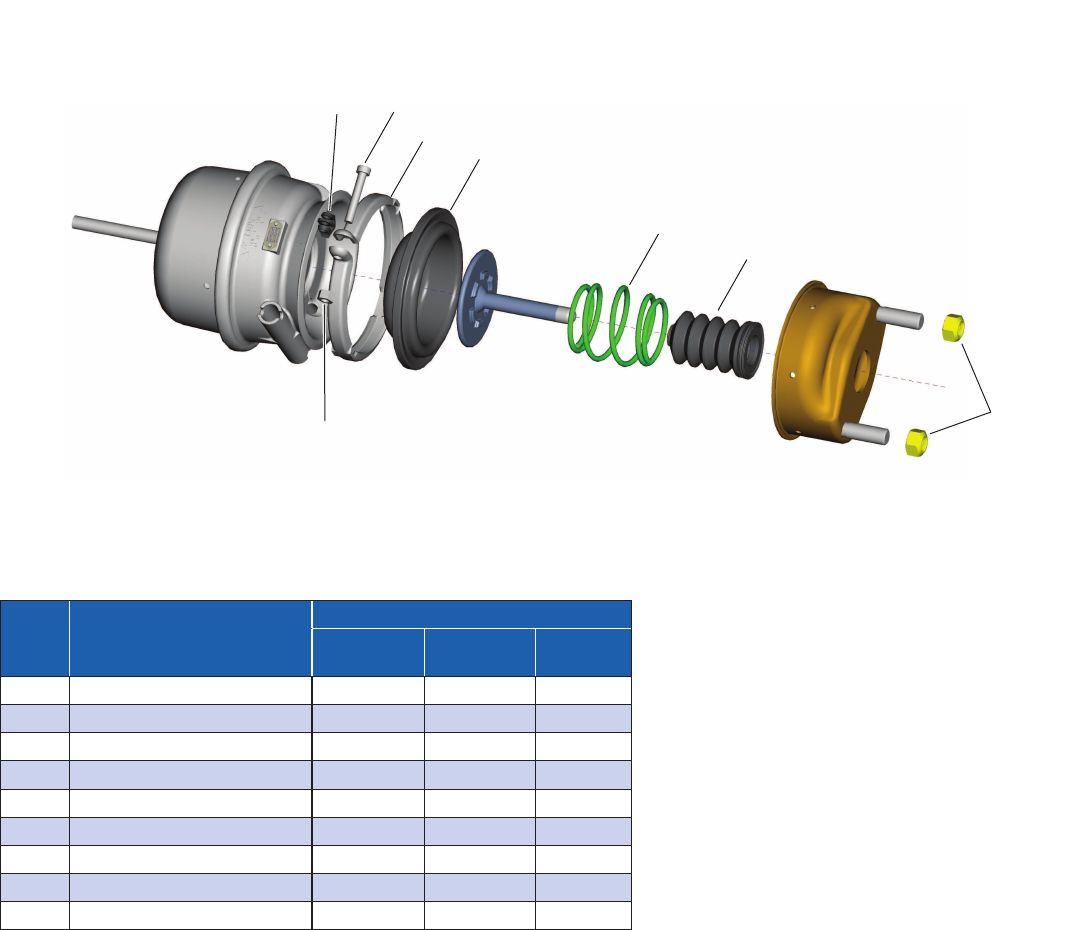

B. Bendix Air Disc Brake Chamber Maintenance Kit Contents

The following describes the components included in the maintenance kits referenced in Section A (Diaphragm Kit, Clamp

Ring Kit, Bellows Kit):

For Speciﬁ c Part No. information, please see section A.

1 2 3 4 5 6 7 8
