Rev 5 Jul/2004 KGP 560/860 Pilot's Guide

11

Functions and Features

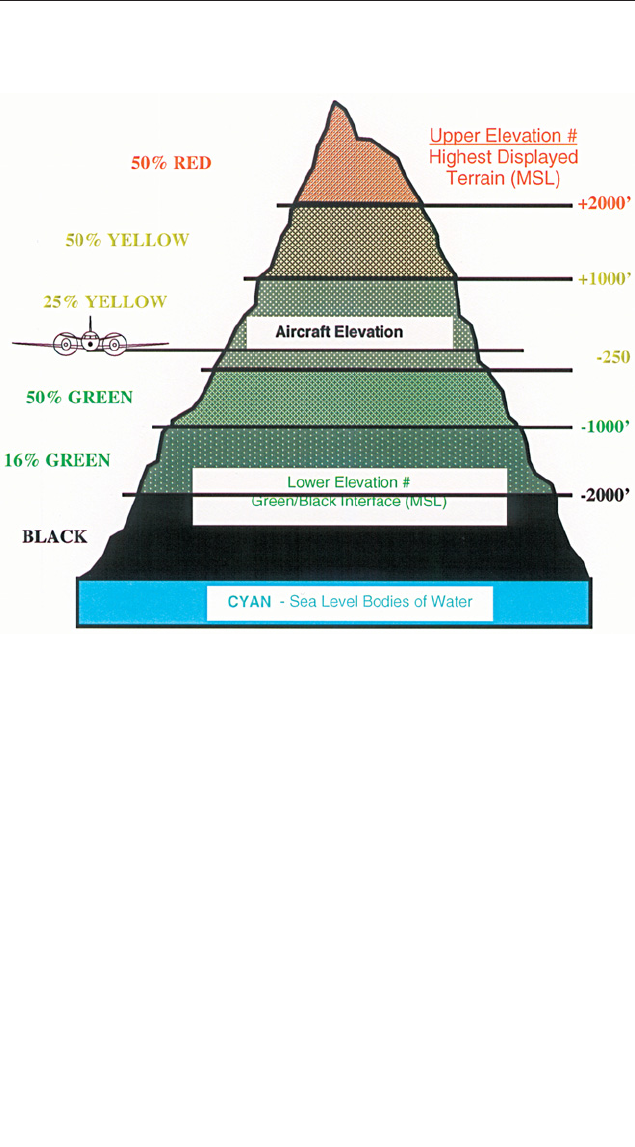

The following figure shows the Terrain Display color patterns when the

aircraft is at lower altitudes, with terrain near or above the aircraft altitude

for the display range selected by the pilot.
