CONFIDENTIAL
Bendix Commercial Vehicle Systems LLC
Elyria, OH 44036
PRODUCT SPECIFICATION - BW-283-PR
SPEC. BW-283-PR
73 SHEETS
SHEET NO. 70
8.3 Application Diagrams
2S/1M - AXLE CONTROL
Trailer
Chassis Harness
ABS
Dual Axle Trailer
SR-5
Trailer ABS
Pigtail Harness
5-PIN
CONNECTOR
Ignition
Power
Brake Light
Power
Ground
7-PIN
CONNECTOR
S
U
P
P
L
Y
L
I
N
E
C
O
N
T
R
O
L
L
I
N
E
A Brake Light Power
B Ignition Power
C NC
D Warning Lamp
E Ground
C
E
B
A
D
TABS6
MOD1
ABS Light
TABS
WS Sensor
"SR"
WS Sensor
"SL"

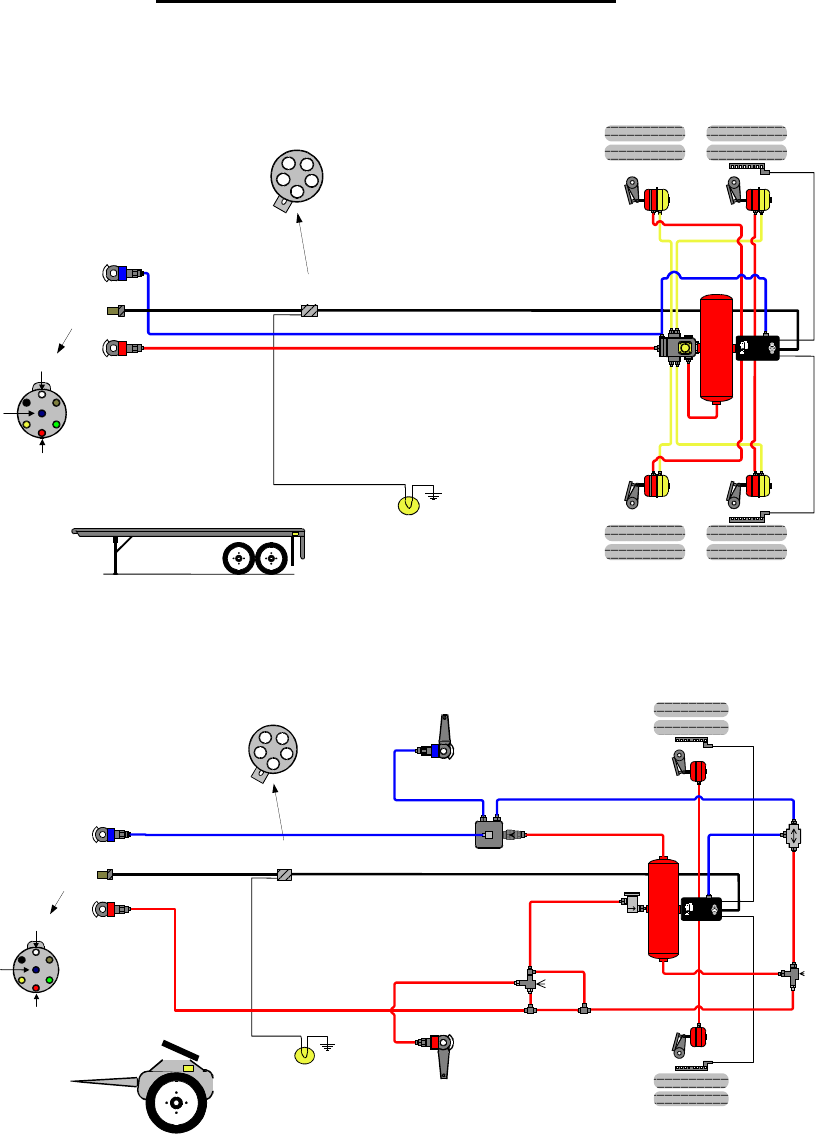

Figure 32: Typical 2S-1M Axle Control ABS Electrical and Air System
2S/1M - DOLLY AXLE CONTROL
Trailer
Chassis Harness
Trailer ABS
Pigtail Harness
5-PIN
CONNECTOR
Ignition
Power
Brake Light
Power
Ground
7-PIN
CONNECTOR
S
U
P
P
L
Y
L
I
N
E
C
O
N
T
R
O
L
L
I
N
E
A Brake Light Power
B Ignition Power
C NC
D Warning Lamp
E Ground
C
E
B
A
D
TABS6
MOD1
ABS Light
TABS
WS Sensor
"SR"
WS Sensor
"SL"
Dolly
ABS
DC-4
TR-3
PR-3
SV-4
SC-3
R-12P
Coupling - Control
Coupling - Supply
Figure 33: Typical 2S-1M Dolly-Axle Control ABS Electrical and Air System
DOCUMENTO CONTROLADO DE FORMATO ELECTRÓNICO: Antes de utilizarlo se requiere verificar el nivel de revision o la suficiencia.
CONTROLLED ELECTRONIC MEDIA DOCUMENT: Verification of revision level or adequacy is required prior to use.
